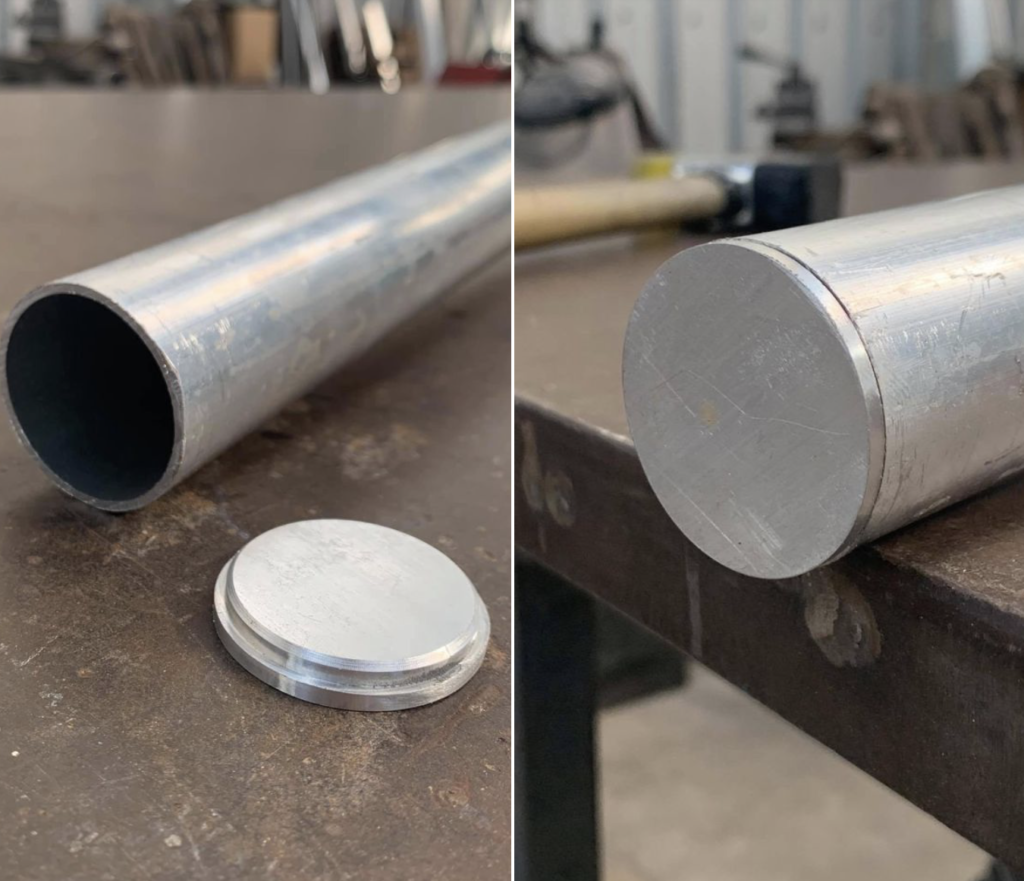

Sizing round tube end caps starts with one measurement most buyers already know they need - outside diameter - and one they often skip - wall thickness. Get both from the tube you will install, and a CNC aluminum cap seats as a permanent interference fit without glue or welding.
This how-to shows how fabricators choose aluminum round tube end caps by OD and wall, how pipe labels map to the same product family, and when a stock size should give way to a custom size end cap.
Shop the round collection first
If the section is round, start in round end caps. That collection is filtered for round profiles so you are not sorting past square or rectangle SKUs. Use the full aluminum end caps range when a job mixes shapes, or jump to square and rectangle when the cut list is not round.
Search phrases like round tube end caps, aluminum round tube end caps, round end caps, and round tube end cap all point at the same product: CNC-machined aluminum caps sized to close open round tube ends. Nelsons does not run a separate "pipe-only" round line - if drawings say pipe, translate the label into measured OD and wall the same way as tube. Background: aluminum pipe end caps vs tube end caps.
Outside diameter is the primary size key
Stock round titles lead with outside diameter because OD is what you see on the finished tube and what calipers read across the open end. A true match means the cap flange finishes the outside face cleanly while the insert engages the internal opening.
Before you order:
- Outside diameter (OD) - measure across the tube end with digital calipers; do not rely on a packing-list habit like "2 inch tube"
- Wall thickness - measure the wall at the open end; the insert is sized to the internal opening created by OD minus twice the wall
- Cut quality - square, deburred ends install more predictably than rough saw cuts or crushed tips
- Coating build-up - heavy powder or paint inside the mouth can shrink the effective opening even when bare OD looks correct
Full caliper method: how to measure aluminum tube for end caps. Wrong OD or wall is the usual reason a round cap feels loose, sits proud, or will not start.
Why wall thickness must travel with OD
Two tubes can share the same outside diameter and still need different caps. A 2" OD section with a thin wall has a larger internal opening than a 2" OD section with a heavy wall. The interference-fit insert is machined for that internal geometry, not for a single generic "2 inch" label.
On nelsonscnc.com, round stock is listed as OD x wall (inches) - for example 1" x 0.125", 2" x 0.125", or 3" x 0.188". Read both numbers. Matching OD alone and ignoring wall is how near-size mistakes get ordered at quantity.
A correct round tube end cap should:
- Start squarely on the tube with controlled rubber-mallet taps
- Seat fully so the outer face finishes the end cleanly
- Hold under normal handling without adhesive, screws, or welds
- Track aluminum thermal movement on outdoor and architectural work better than a soft plastic plug
That is the practical meaning of an interference fit on round tube. Soft multi-fit covers solve temporary protection; they are not a substitute when the end is visible or outdoors. Material trade-offs: aluminum vs plastic tube end caps.
Pipe language vs tube language on round sections
Pipe and tube are the same end-cap product family once you stop treating the word as the size. Pipe schedules and nominal pipe sizes often do not equal the number stamped in conversation. Tube is usually ordered closer to actual OD, but imported or coated stock still drifts.
Work the same checklist either way:
- Ignore the word on the cut list long enough to put calipers on the open end
- Record OD and wall in inches (or convert carefully if the drawing is metric)
- Match a published round end caps size to those two numbers
- If nothing matches, open custom rather than forcing a near size
If your search started as pipe caps, keep the same path - measure, then shop round stock. See also tube end covers vs end caps when the RFQ used finish language instead of catalog language.
Buying checklist for round tube end caps
- Confirm shape - round only. Square and rectangle are different collections even when one dimension looks familiar.
- Record OD and wall - write caliper numbers on the cut list, not a memory of "standard 1.5".
- Match stock in round end caps - prefer exact OD x wall over "close enough".
- Order quantity with a buffer - extra ends, site damage, and future extensions beat a second rush shipment.
- Plan install - square clean cuts, rubber mallet, follow how to install aluminum end caps.
When stock OD x wall is wrong
Skip forcing a near size when:
- Measured OD or wall sits between published stock sizes
- The extrusion is die-specific, metric, or mixed-unit
- Schedule or nominal pipe labels disagree with calipers
- Coating inside the mouth changes the effective opening across a full batch
- Quantity is high enough that a forced near-size would fail on every end
Use custom size end caps with caliper measurements (and a drawing if you have one). Custom work is still the same product type: CNC aluminum, interference-fit, sized to your round section - not a different catalog philosophy. Spec checklist: what to specify for a fast accurate quote. Common fit questions also sit on the FAQ.
Round vs other shapes on mixed jobs
Rails, frames, and posts often mix profiles. Keep selection simple:
- Round end caps for round tube or pipe-like OD sections
- Square end caps when both outside axes match (and edge type is confirmed)
- Rectangle end caps when width and height differ
- Aluminum end caps when you need the full shape map in one place
Do not substitute a square or rectangle cap onto round tube because a published dimension looks similar. Outside diameter and wall both have to match the round opening. Square buyers can also use how to choose aluminum end caps for square tube.
Quick decision path
- Is the section round on OD? If yes, stay in round end caps.
- Measure OD and wall on the actual cut ends (measuring guide).
- Match published OD x wall. If pipe language started the search, still use the caliper pair - not the schedule nickname.
- If nothing matches, open Custom Size with real numbers - do not force a loose or crushed fit.
- Install per how to install once the size is correct.
FAQ - round tube end cap sizing
Is outside diameter enough to order round end caps?
No. OD picks the right size family, but wall thickness decides the internal opening the insert must fit. Order OD x wall together.
Do round pipe and round tube need different caps?
No separate product family. Measure OD and wall on the section you will close, then match round end caps or request custom. The word on the drawing does not replace calipers.
What if my OD matches stock but the wall does not?
Do not buy the OD-only near size. Either find the published OD x wall pair that matches both readings, or use custom size end caps with the measured pair.
Bottom line
Aluminum round tube end caps are sized by measured outside diameter and wall thickness, not by a nominal pipe or tube nickname. Start in the round end caps collection, confirm OD x wall on the batch you will install, and reserve custom size for non-stock sections. When the match is right, you get a clean aluminum finish and a true interference fit that holds without adhesive.
Browse round tube end caps for stock sizes, keep the measure guide next to the calipers, and use installation guidance when the caps arrive on site.
